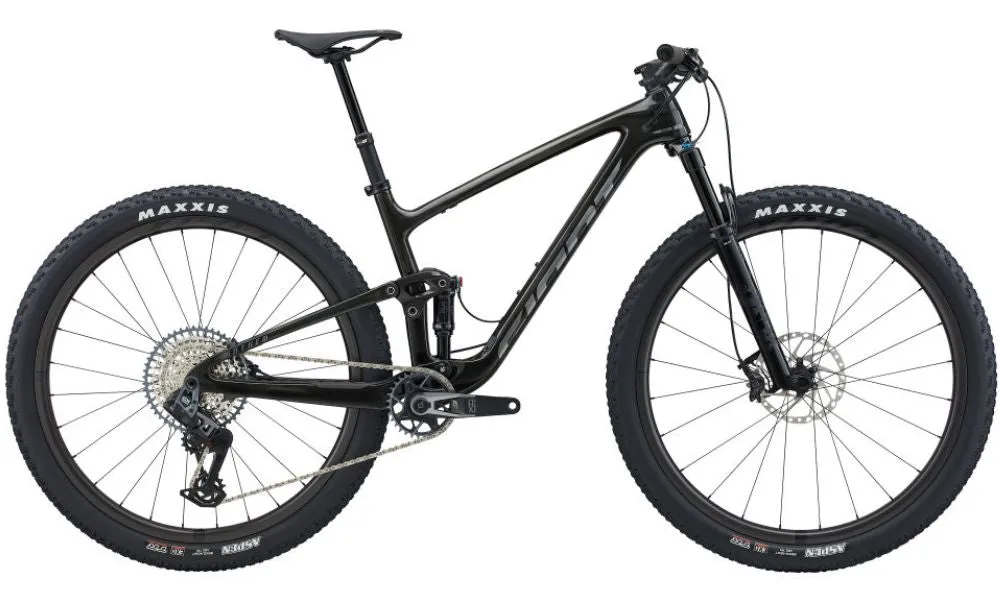

Giant 2025 Anthem Advanced 29 1
Specifications
Giant 2025 Anthem Advanced 29 1
Frame
Colour: Raw Carbon
Frame: Advanced-Grade Composite front and rear triangles, 100mm FlexPoint Pro suspension, UDH hanger, 12x148mm thru-axle, 55mm Chainline
Fork: Fox 34 Float SC Performance Elite, 110mm, GripSL damper, Boost 15x110 Kabolt, 44mm offset, 3 position lockout, custom tuned for Giant
Shock: Fox Float SL Performance Elite, 3 position lockout, custom tuned for Giant
Drivetrain
Crankset: SRAM XO T-Type, Powermeter 32t, 55mm chainline S:170mm, M:175mm, L:175mm, XL:175mm
Pedals: NA
Chain: SRAM GX T-Type
Bottom Bracket: Sram DUB, press fit
Rear Derailleur: SRAM GX Eagle T-Type AXS
Front Derailleur: NA
Derailleur Shifter: SRAM AXS Pod, 1x12
Freewheel/Cassette: SRAM GX, T-Type 10x52
Braking System
Brakes: Shimano Deore XT BR-M8100, hydraulic, Shimano RT-64 rotors [F]180mm, [R]160mm
Brake Levers: Shimano Deore XT BL-M8100
Wheels
Tyres: Maxxis Aspen 29x2.4, foldable, TLR, EXO, tubeless
Wheels/Rims: Giant XCR 1 30 Carbon WheelSystem, 30mm inner width
Hubs: [F] Giant XC alloy, CenterLock [R] Giant XC alloy, DT350 internal, 54t ratchet system, CenterLock
Other
Handlebar: Giant Contact SLR XC Flat, composite, 35mm
Stem: Giant Contact SL XC, 35mm S:60mm, M:70mm, L:70mm, XL:70mm
Saddle: Giant Grit SL
Seat Post: Giant Contact Switch AT dropper, adjustable travel, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Geometry
Giant 2025 Anthem Advanced 29 1
-
- S
- 163 cm 172 cm
-
- M
- 171 cm 180 cm
-
- L
- 179 cm 188 cm
-
- XL
- 187 cm 198 cm
| S | M | L | XL | ||
| A | Seat Tube Length (MM) | 390 | 420 | 465 | 495 |
| B | Seat Tube Angle | 75.5° | 75.5° | 75.5° | 75.5° |
| C | Top Tube Length (MM) | 572 | 604 | 626 | 653 |
| D | Head Tube Length (MM) | 90 | 95 | 105 | 115 |
| E | Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
| F | Fork Rake (MM) | 44 | 44 | 44 | 44 |
| G | Trail (MM) | 109.0 | 109.0 | 109.0 | 109.0 |
| H | Wheelbase (MM) | 1127 | 1159 | 1183 | 1212 |
| I | Chain Stay Length (MM) | 435 | 435 | 435 | 435 |
| J | Bottom Bracket Drop (MM) | 42 | 42 | 42 | 42 |
| K | Stack (MM) | 589 | 593 | 603 | 612 |
| L | Reach (MM) | 420 | 450 | 470 | 495 |
| M | Stand Over Height (MM) | 745 | 750 | 777 | 800 |
| O | Stem Length (MM) | 60 | 70 | 70 | 70 |
| P | Crank Length (MM) | 170 | 175 | 175 | 175 |
| Q | Wheel Size | 29" | 29" | 29" | 29" |
