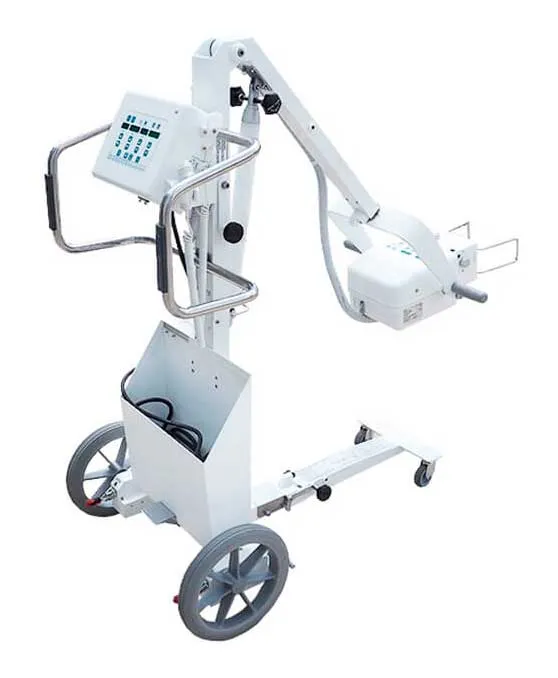

GP-10-DR Portable System with Toshiba DR Panel

SPSLW4-AL-DR

• 40 to 125 kVp in 1 kVp steps
• 125 kVp@ 32 mA, 100 kVp@40 mA, 50 kVp@80 mA, 40 kVp@ 100 mA
• 14 mA Stations: 5, 6, 8, 10, 12.5, 16, 20, 25, 32, 40, 50, 64, 80 & 100
• 0.001 - 10 Second exposure time range, 0.1-250 mAs
• Allows customization of 6 APR regions (skull, thorax, spine, abdomen/pelvis, lower and upper extremities) - small, medium, large, and pediatric patient sizes
• 0.5mm - 1.8mm stationary anode x-ray tube, 47,215 kHU on 4kW unit
• 0.6mm - 2.8mm stationary anode x-ray tube, 40,000 kHU on 8kW unit
• Line Voltage: 110/220 VAC
• Generator integration with 17'' touch screen operator console
• Foldable T-Shape Leg/ Plastic Wheels
• 360° Rotation of Tube Head
• Power Cord 20 feet long, Exposure Cord 10 feet long
• Stand on base with mechanical brakes on rear wheels
• Front steering wheels and rear main transport wheels
• 17.5" to 78.7" Vertical tube travel (44.5cm - 200cm)
• Manual collimator with centering light and SID measuring tape
• 170.9-pound total weight
• Line power detection system checks what incoming power is provided and once available power is determined, the exposure parameters are modified to accommodate the available power

FDX3543RP

• Active area 350 (H) x 43 Mmm (14x17")
• Cesium Iodide (Csl) with Amorphous Silicon (a-Si) photodiode
• 2448 (H) x 2984 M Pixel Matrix; 143-micron Pixel Pitch
• Short Cycle Time: Shot to Shot 6 sec.
• Limiting Resolution: 3.7 Ip/mm typical
• MTF (2.0Lp/mm, 70kVp, 1x1) 36% typical; DOE >70%
• 16 bit ND  conversion; Energy Range: 40-150kVp
• 4 mR / frame maximum entrance dose
• Power Supply Unit
• Sensor weight: 6.6 pounds (3kg)

HC-ECOM

• Symphony Image Processing Software to improve image contrast, adjust dynamic range, enhance details and reduce noise, to produce
• the highest quality images
• Generator Integration allows the software to control the generator
• Image Management (PACS, HIS/RIS)
• DICOM communication, full DICOM 3.0 Compatibility, DICOM worklist from HIS/RIS, store images through PACS network system,
• DJCOM image print, DJCOM MPPS

QPTIONAL_:_    Wireless Detector in place of Tethered Detector,

*This product has been permanently discontinued.

Replacement products available.
